Microscope maka nhazi eriri waya nkenke: nyocha nka dị omimi nke TCA-120 Series Terminal Cross-Section Analyzers

N'ime ụgbọ ala ume ọhụrụ (NEV), ikuku ikuku, na ụlọ ọrụ elektrọnik ziri ezi, ntụkwasị obi nke njikọ eriri waya bụ isi nkuku nke nchekwa sistemu. Omenala nleba anya ịdị mma crimp na-adaberekarị na nnwale ndọpụta, mana uru ndọpụta ike na-agafe anaghị adaba na njikọ zuru oke. Iji chọpụta ntụpọ ezoro ezo n'ime crimp, ndị na-enyocha mpaghara njedebe abụrụla ihe dị mkpa "microscope njikwa mma."

I. Gịnị kpatara Nnwale Pull-Force Anakwaghị ezuru
Nnwale ịdọrọ ike ọdịnala na-egosipụta naanị ike njikọ igwe dị n'etiti ọnụ na waya, na-agaghị ekpughe ọnọdụ micro-anụ ahụ dị n'ime crimp. N'ebe ndị na-ebu akara ngosi dị ugbu a dị elu ma ọ bụ dị elu, nhazi nke obere n'ime crimp dị oke egwu karị:

• Oke mkpakọ na-ezighi ezi:Mkpakọ rụrụ arụ na-eduga n'ịbawanye nguzogide kọntaktị, nwere ike ịkpata ọgbọ okpomọkụ ma ọ bụ ọbụna ọkụ. Mkpịsị aka siri ike nwere ike imebi eriri ọla kọpa, na-ebelata ike ọgwụgwụ nke igwe.
• Oghere dị n'ime:Ikuku fọdụrụ n'ime mpaghara mkpọnwụ nwere ike iduga na oxidation metal, na-ebute ọdịda njikọ maka iji ogologo oge eme ihe.
• Akara geometric:Ma crimp nku kechie kpamkpam na ma ọ bụla flash emee kpọmkwem na-emetụta akara arụmọrụ na n'ibu ndụ.

II. Usoro TCA-120: Akpaaka zuru oke, nyocha ọrụ nyocha
Usoro TCA-120 na-eji nrụnye akpaka zuru oke, jikọtara ọnụ, na-eme ka usoro nyocha ụlọ nyocha nke ekewara na mbụ ma gbagwojuru anya n'ime arụmọrụ ahaziri ahazi n'ime nkeji:

• Mbelata nke ọma:Modul ịkpụ ọsọ dị elu arụnyere n'ime nwere ike ịnweta akụkụ obe dị larịị na-akpaghasịghị steeti mkpọmkpọ mbụ nke ọdụ ahụ.
• Na-egweri na akpaaka:Ezubere iche ihe dị iche iche (ọla kọpa, aluminom, alloys, wdg), usoro ahụ na-enye atụmatụ ịhịa aka n'ọtụtụ ọkwa iji hụ na ngalaba obe na-enweta mmetụta enyo-emecha.
• Nhicha kemịkalụ (corrosion):Ngwa ngwa na-ekpughe ihe nkọwapụta nke oghere igwe dị iche iche, na-eme ka a na-ahụ oke nke eriri ọla kọpa nke ọma.
• Onyonyo na nyocha microscopic:Ijikọta usoro mbugharị ngwa anya dị elu, a na-ebufe nkọwa microscopic na ngwanrọ ọkachamara maka nyocha ọnụọgụ. Enwere ike iwepụta akụkọ PDF kwekọrọ n'ụkpụrụ mba ụwa (dị ka IPC/WHMA-A-620) site na otu ọpịpị.

III. TCA-120 na TCA-120S: Ntụle nkọwa nka nka
1.The ọnụ ọnwụ nso nke TCA-120 bụ 0.01-33.62mm², mgbe ọdabara waya nso nke TCA-120S bụ 0.05mm² ka 120mm².
2.The ulo oru pikselụ nke TCA-120 bụ 5 nde, na ulo oru pikselụ nke TCA-120S bụ 12 nde.
3.Software Interaction Logic: Site na "Nkọwa akwụkwọ ntuziaka" gaa na "Templated Comparison"
N'ọkwa nhazi ngwanrọ, TCA-120 na TCA-120S gosipụtara nkà ihe ọmụma dị iche iche:

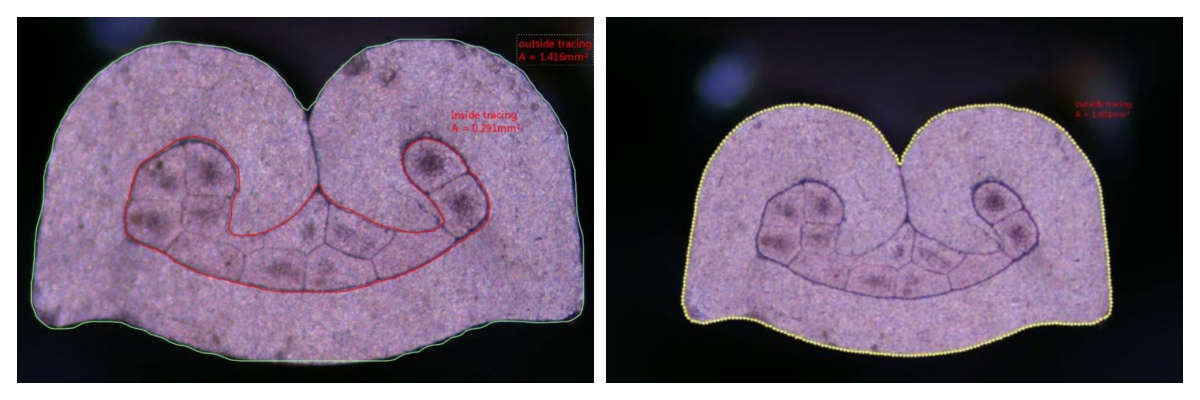

• Mgbanwe nke TCA-120:Na-eji teknụzụ nkọwa nkọwa ntuziaka dabere na òké. Ndị na-arụ ọrụ nwere ike ịrụ nha inyeaka nke ọma n'ọnụ ọnụ ndị na-adịghị ahụkebe dabere na onyonyo ozugbo. Nke a na-enye ya nnukwu mgbanwe mgbe ọ na-emekọ ihe n'ụdị mgbagwoju anya ma ọ bụ akụkụ na-abụghị ọkọlọtọ n'oge usoro R&D.
• Ịrụ ọrụ nke TCA-120S: Ewebata usoro ntụnyere ndebiri crimping ahaziri ahazi. Ejiri ngwa nbipute dị iche iche arụrụ arụrụ n'ime ngwanro ahụ kpọmkwem maka njikọta ọkwa ọkwa ụgbọ ala. Site na "otu-pịa oku + nhazi ọgụgụ isi," usoro ahụ nwere ike igbachi ngwa ngwa na nku crimp, akụkụ nkwado na mpaghara mkpakọ, na-ebelata oge nyocha nke otu akụkụ yana hụ na ịdị elu nke data nleba anya dị elu gafee mgbanwe dị iche iche.

Ebubatara sistemu a ma nwee ọtụtụ ihe nyocha akpaka ọkọlọtọ mba ụwa (gụnyere akara ngosi nka dị iche iche maka ụgbọ ala, ngwa ụlọ na ụlọ ọrụ eletrọnịkị, wdg). Ọ na-enyocha ọtụtụ ụkpụrụ dị ka VW 60330, VWI, SAE / USCAR-21, Renault36-05-019 /--G, na PSA 9634115099 (nke na-egosipụta ngalaba-ms, ugbu a bụ sọftụwia nyocha otu-pịa ihe kachasị elu na ụlọ ọrụ).

IV. Ihe ngosipụta ikpe bụ isi: Ụkpụrụ njikwa ogo na-ebute data

Iji usoro usoro TCA, ndị ọrụ nyocha nke ọma nwere ike tụọ ihe nrịbama ndị a n'ụzọ ziri ezi dabere na ụkpụrụ mba ụwa dịka IPC/WHMA-A-620:

• Oke mkpakọ:Usoro mgbako bụ S=Sa/Sb ×100%
  (ebe Sa bụ ngụkọta ebe ọla kọpa wires mgbe crimping, na Sb bụ ebe mbụ tupu crimping). Uru kacha mma bụ n'etiti 80% na 90%.
• Akụkụ nkwado:Na-enyocha ọdịdị ọdịdị nke nku crimp iji hụ na ha na-eme mkpakọ otu na isi waya.
• Nchọpụta Flash:Na-enyocha ọnọdụ eyi nke ihe na-akpụ akpụ iji gbochie flash ịpupu akwa mkpuchi mkpuchi.

(Isi mmalite: na-ezo aka na IPC/WHMA-A-620 Ụkpụrụ nnabata Mgbakọ USB na Wire Harness)

V. Ngwa Pụrụ Iche: Ihe Nrụgide Waya Dị Elu-Voltage Ọhụrụ yana Ọdụ N'ụdị Odd.

Ka ikpo okwu voltaji nke ụgbọ ala ume ọhụrụ na-arị elu na 800V, ihe ndị a chọrọ maka ịkwanye eriri waya voltaji dị elu fọrọ nke nta ka ọ bụrụ draconian. Usoro TCA-120 nwere ike ijikwa ọ bụghị naanị ọnụ ọnụ cylindrical nkịtị kamakwa:

• Aluminium Wire Crimp Analysis:Na-enyocha mgbaji nke oyi akwa oxide n'elu waya aluminom iji hụ na nrụpụta eletrik.
• Ọdụ ọdụ ndị nwere ọdịdị dị iche (dịka ọmụmaatụ, Ogwe ọla kọpa nwere nnukwu square):Site a anụ n'ibu clamping usoro, ana achi achi na perpendicularity nke nnukwu nkọwa cross-ngalaba ọnwụ.

VI. Mmechi

NkeTCA-120naTCA-120Susoro ọnụ cross-ngalaba analyzer abụghị nanị ngwaọrụ nyocha kama ha bụ igodo dị mkpa maka ụlọ ọrụ na-agbanwe site na "nhazi ahụ dabere" gaa na "n'ichepụta dijitalụ." Site na nyocha miri emi nke akụkụ crimp cross-sections, ndị na-emepụta nwere ike ịkwalite ihe ndị na-emepụta ihe, belata ihe mkpofu ihe, na n'ikpeazụ hụ na arụmọrụ nke eriri waya ọ bụla n'okpuru ọnọdụ ọrụ siri ike (dị ka okpomọkụ dị elu na elu vibration).
