POSITION: HOME > Products > Stripping
UniStrip 2016 Pneumatic Wire Stripping Machine
The UniStrip 2016 is a pneumatic wire stripping machine for stripping discrete wires and small multi-conductor cables up to 2.08 mm².
Share us:
/d/images/products/stripping/UniStrip-2016-02.jpg
/d/images/products/stripping/Unistrip%202016%20Wie%20Strip%20Machine%20PACKAGE.jpg
/d/images/products/stripping/Unistrip%202016%20Wie%20Strip%20Machines-.jpg
/d/images/products/stripping/Unistrip%202016.jpg
Products List
EC-6100 Automatic Heat Shrink Tube Cutting Machine
EC-830 Corrugated Tube Cutting Machine
EC-6500 Automatic Cable and Tube Cutting Machine
EC-810 Automatic Cable Cutting Machine
EC-850X Automatic Rotary Cutting Machine
EC-821 Corrugated Tube Cutting Machine
EC-890 Multifunctional Automatic Cutting Machine
EC-6800 Automatic Cutting Machine
EC-823 High Speed Cutting Machine
EC-805 Automatic Cable Cutting Machine
UniStrip 2016 Pneumatic Wire Stripping Machine
UniStrip 2018E Electric Cable Wire Stripping Machine
CS-5507 Automatic coaxial cable stripping machine
CS-5515 Automatic coaxial cable stripping machine
CS-400 Braided Shield Cable Stripping Machine
CS Series Rotary Cable Stripping Machine
CS-2486 Coaxial Cable Wire Stripping Machine
CS-4855 Coaxial Cable Stripping Machine
CS-9580 Automatic Coaxial Cable Stripping Machine
CS-9680 Automatic Coaxial Cable Stripping Machine
ESC-BX1 Wire Cutting and Stripping Machine
ESC-BX4 Wire Cutting And Stripping Machine
ESC-BX30 Automatic Large Cable Cutting and Stripping Machine
ESC-BX30S Sheathed Cable Automatic Cutting and Stripping Machine
ESC-BXSNY Automatic Rotary Cable Stripping Machine
ESC-BX6 Wire Cutting And Stripping Machine
ESC-BX7 Wire Cutting And Stripping Machine
ESC-BX8S Sheath Cable Cutting and Stripping Machine
ESC-BX8PR Wire Cutting And Stripping Machine
ESC-BX9 Automatic Cut and Strip Machine
TM-20 Terminal Crimping Machine
TM-20S Automatic Wire Terminal Crimping Machine
TM-200 Terminal Crimping Machine
TM-E140 Pre-insulation Ferrule Terminal Strip And Crimp Machine
TM-E116 Electrical Terminal Crimping Machine
TM-P120 Pneumatic Terminal Crimping Machine
SAT-AS6P Pneumatic Crimping Applicator
SAT-MS6 Mechanical Crimping Applicator
TM-E140S Automatic Wire Stripping Ferrule Crimping Machine
Side Feed Terminal Crimping Applicator
TM-200SC Automatic Strip and Weather Pack Terminal Crimp Machine
TM-20SCM Automatic Cable Stripping and Crimping Machine
TM-80SCS Servo Stripping and Crimping Machine
TM-30SC Stripping and Crimping Machine
TM-15SCE Electrical Stripping and Crimping Machine
TM-20SCS Servo Stripping and Crimping Machine
TM-15SC Stripping and Crimping Machine
TM-E140 Pre-insulation Ferrule Terminal Strip And Crimp Machine
ESC-BZ30-3D Wire Cut Strip 3D Bending Machine
ESC-BZ06 Wire Cutting Stripping and Bending Machine
ESC-BZ16 Automatic Cutting Stripping and Bending Machine
ACC-101 Automatic Single-head Terminal Crimping Machine
ACC-102A Fully Automatic Terminal Crimping Machine (Both Ends)
ACC-102B Automatic Double Terminal Crimping Machine
ACC-105 Fully Automatic Single-head End-dipping Tin Machine
ACC-106 Fully Automatic 5-Wire Single-head End-dipping Tin Machine
ACC-308 (Both ends) Full automatic Soldering machine
ACC-208 Fully Automatic Crimping Machine (Both Ends)
ACC-508 Fully Automatic Twisting, Soldering and Crimping Machine
ACC-608 Fully Automatic Flat Cable Cut Strip and Crimp Machine
HV-CS 9070 High-Voltage Cable Shield Cutting Machine
HV-FS 9053 Cable Shield Folding Machine
HV-ACS 9100 Cable Shield Processing Machine
HV-ACS 9200 Automatic Cable Shield Processing System
HV-ACS 9300 Automotive High Voltage Cable Processing Machine
HV-ACS 9500 High Voltage Cable Processing Machine
HV-FC 9312 Aluminum Foil Cutting Machine
HV-CS 9120 Cable Stripping Machine
TM-FK40 Terminal Crimping Machine
CS-5507 Automatic coaxial cable stripping machine
CS-5515 Automatic coaxial cable stripping machine
CS-4855 Coaxial Cable Stripping Machine
CS-2486 FAKRA Cable Stripping Machine
HSM-60 Heat Shrink Tube Processing Machine
HSM-70 Heat Shrink Tube Processing Machine
HSM-80B Heat Shrink Tube Processing Machine
HSM-90 Heat Shrink Tube Processing Machine
HSM-25M Heat Shrink Tube Processing Machine
HSM-120 Heat Shrink Tube Heating Machine
HSM-50 Heat Shrink Tube Processing Machine
HSM-160 Heat Shrink Tube Processing Machine
HSM-80A Heat Shrink Tube Heating Machine
HSM-260E Enclosed Heat Shrink Tube Processing Machine
STB-10 Automatic Tape Bundling Machine
STB-30 Automatic Tape Bundling Machine
STB-50 Desktop Bundling Machine
STB-60 Adhesive Tape Bundling Machine
STB-55 Desktop Tape Bundling Machine
STB-50C Automatic Tape Cutting Machine
STP-B Hand-held Taping Machine
STP-F Hand-held Lithium Battery Tape Wrapping Machine
STP-C Automatic Wire Taping Machine
STP-D Automatic Tape Wrapping Machine
CB-B15MCS Automatic Wiring Winding Machine
CB-B15MCST Automatic Wiring Winding Binding Machine
CB-F30/150MCS Automatic Wiring Winding Machine
CB-F30/150MCST18-45 Automatic Wiring Winding Binding Machine
CB-F30/150MCST40-80 Automatic Wiring Winding Binding Machine
CB-B15CST Automatic Wiring Coiling Binding Machine
CB-F500MCS Automatic Wiring Winding Machine
CB-B30/150CS Automatic Wiring Winding Machine
CB-B10/15CS Automatic Wiring Winding Machine
CB-WT630 Automatic Wire Winding and Tying Machine
PF-08 Automatic Wire Prefeeder
PF-30 Automatic Prefeeding Machine
PF-60 Automatic Prefeeding Machine
PF-150 Automatic Wire Prefeeding Machine
CC-380 Cable Coiling Machine
CC-680 Automatic Cable Coiling Machine
CC-380D Cable Coil Machine
PF-120 Large Automatic Wire Prefeeding Machine
PF-90 Automatic Wire Prefeeder
PF-100 Automatic Prefeeder
PFM-220 Terminal Pulling Force Tester
PFM-300 Terminal Pulling Force Tester
PFM-200 Pull Force Tester For Wire Terminals
TCA-120 Terminal Cross Section Analyzer
TCA-120S Terminal Cross Section Analyzer
TCA-150 Terminal Cross Section Analyzer
PFM-50 Pull Force Measuring Machine
ET-12 Wire Twisting Machine
TCT8-B Cable Tie Tools
TCT8-C Cable Tie Tools
Hand Crimp Tool
Pneumatic Crimp Tool
Features
Parameter
Application

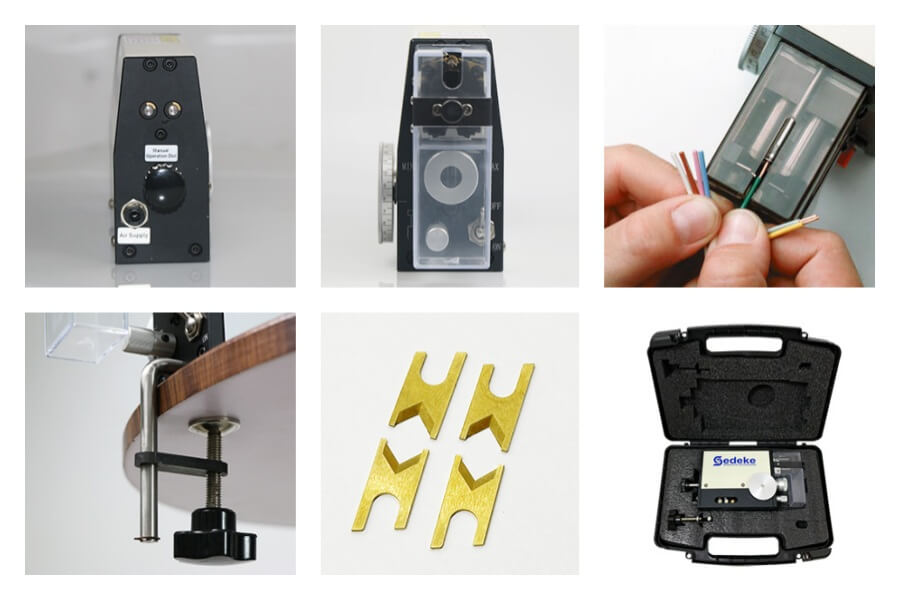

Features
It is a pneumatic wire stripping machine for stripping discrete wires and small multi-conductor cables.
Operating the wire stripping machine is extremely simple.
Pneumatic control, easy operation



Parameter
Wire Size Range AWG 30–12 (0.05–3 mm²)
Precision of Diameter Setting 0.01 mm (0.001")
Max. Outer Cable Diameter (partial strip / full strip) Strip 3.2/3.2 mm (0.12"/0.12")
Length (partial strip/full strip) 1–20/20 mm (0.04–0.78" / 0.78")
Graduated Full Strip Increments 0.5 mm (0.019")
Graduated Partial Strip Increments 2.0 mm (0.078")
Cycle Time (max. stripping length) ca. 0.3 s
Stripping Blade V-blades
Compressed Air 5–6 bar (75–90 psi)
Compressed Air Consumption
(Operation pressure at 6 bar/90 psi)
0.28 l/cycle
Noise Level (equivalent permanent sound pressure level) < 75 dB (A)
Dimensions (L x W x H) 265 x 70x135 mm (10.4 x 2.8x5.3")
Weight (Net/Gross) 2.0 kg/2.4 kg (4.4/5.3 lb.)
Application
Full Stripping
Full Stripping
Half Stripping
Half Stripping
Multi-conductor Cables Stripping Cores
Multi-conductor Cables Stripping Cores
