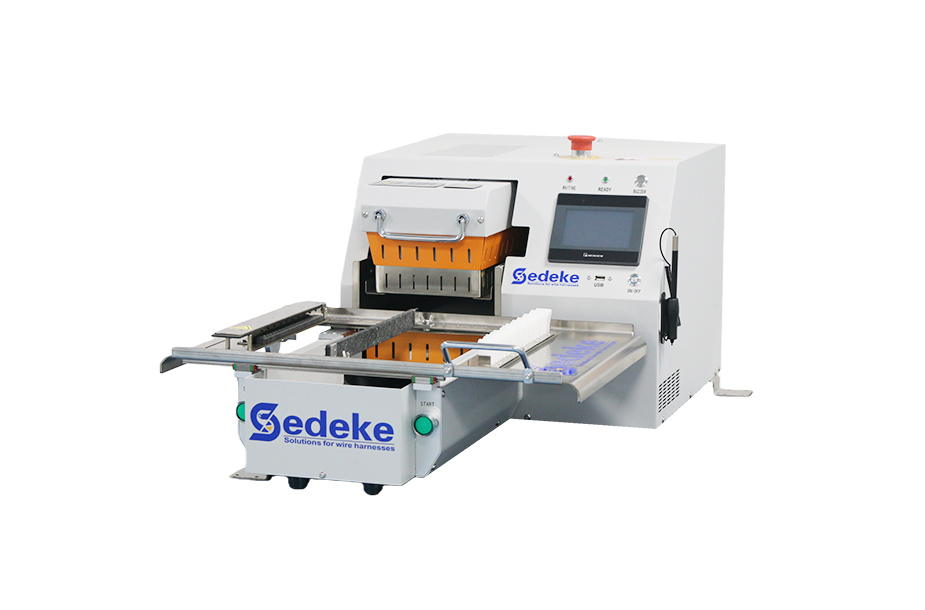

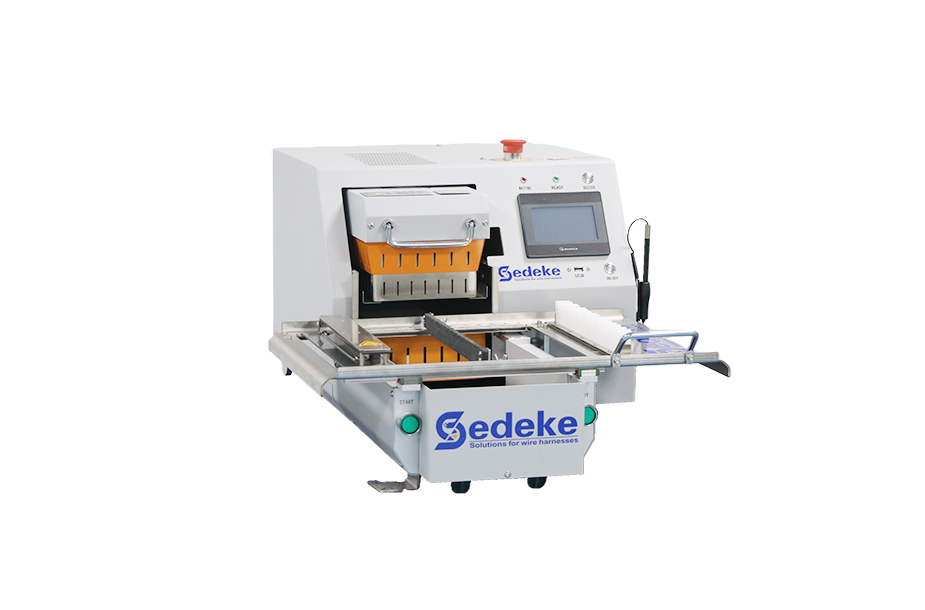

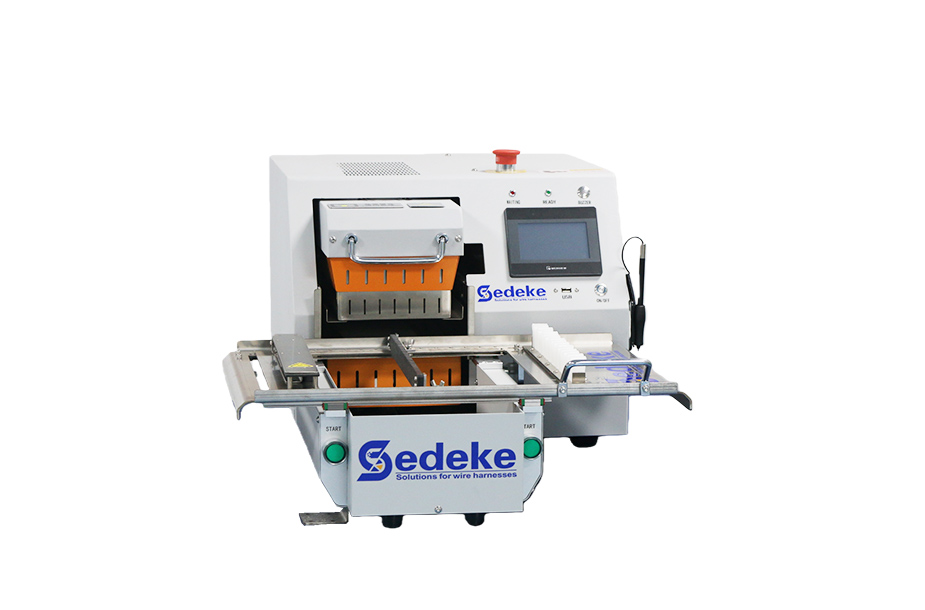

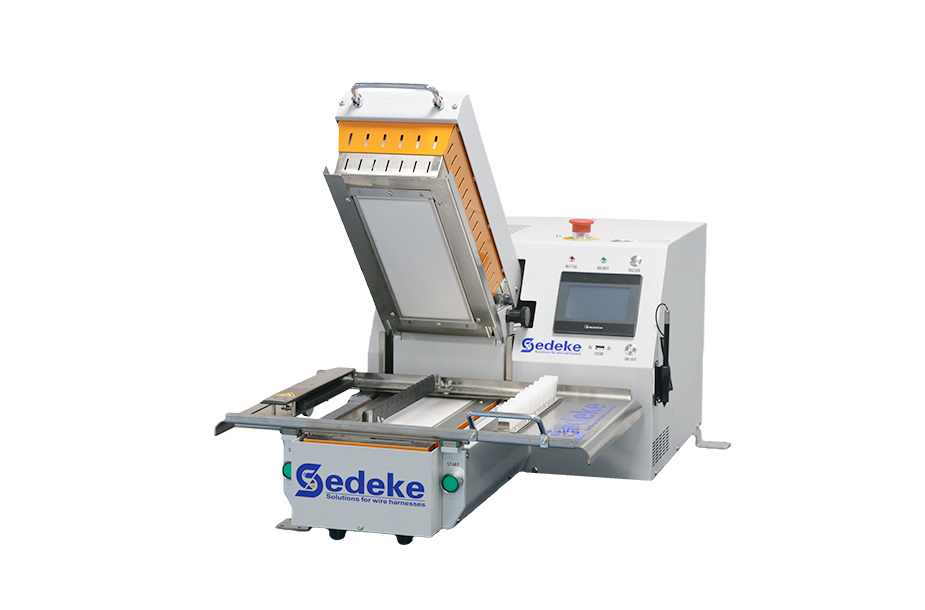

HSM-25M Heat Shrink Tube Processing Machine
The HSM-25M machine machine is suitable for heat shrinking processes where the heat shrink tube is located in the middle or at the head of the wire harness; the heating cavity can move along the Y-axis, and the wire harness bracket can move along the X-axis; multiple wire harnesses can be placed at a time;
Share us:
/d/images/products/HST/HSM-25M-Heat-Shrink-Tube-Processing-Machine-2.jpg
/d/images/products/HST/HSM-25M-1.jpg
/d/images/products/HST/HSM-25M-2.jpg
/d/images/products/HST/HSM-25M-3.jpg
Products List
EC-6100 Automatic Heat Shrink Tube Cutting Machine
EC-830 Corrugated Tube Cutting Machine
EC-6500 Automatic Cable and Tube Cutting Machine
EC-810 Automatic Cable Cutting Machine
EC-890 Multifunctional Automatic Cutting Machine
EC-821 Corrugated Tube Cutting Machine
EC-6800 Automatic Cutting Machine
EC-823 High Speed Cutting Machine
EC-805 Automatic Cable Cutting Machine
EC-860 Corrugated Tube Cutting Machine
UniStrip 2016 Pneumatic Wire Stripping Machine
UniStrip 2018E Electric Cable Wire Stripping Machine
CS-5507 Automatic coaxial cable stripping machine
CS-5515 Automatic coaxial cable stripping machine
CS-400 Braided Shield Cable Stripping Machine
CS Series Rotary Cable Stripping Machine
CS-2486 Coaxial Cable Wire Stripping Machine
CS-4855 Coaxial Cable Stripping Machine
CS-9580 Automatic Coaxial Cable Stripping Machine
CS-9680 Automatic Coaxial Cable Stripping Machine
ESC-BX1 Wire Cutting and Stripping Machine
ESC-BX4 Wire Cutting And Stripping Machine
ESC-BX30 Automatic Large Cable Cutting and Stripping Machine
ESC-BX30S Sheathed Cable Automatic Cutting and Stripping Machine
ESC-BXSNY Automatic Rotary Cable Stripping Machine
ESC-BX6 Wire Cutting And Stripping Machine
ESC-BX7 Wire Cutting And Stripping Machine
ESC-BX8S Sheath Cable Cutting and Stripping Machine
ESC-BX30SC Automatic Cable Wire Cutting and Stripping Machine
ESC-BX120 Automatic Cutting and Stripping Machine
TM-20 Terminal Crimping Machine
TM-20S Automatic Wire Terminal Crimping Machine
TM-200 Terminal Crimping Machine
TM-E140 Pre-insulation Ferrule Terminal Strip And Crimp Machine
TM-E116 Electrical Terminal Crimping Machine
TM-P120 Pneumatic Terminal Crimping Machine
SAT-AS6P Pneumatic Crimping Applicator
SAT-MS6 Mechanical Crimping Applicator
TM-E140S Automatic Wire Stripping Ferrule Crimping Machine
Side Feed Terminal Crimping Applicator
TM-200SC Automatic Strip and Weather Pack Terminal Crimp Machine
TM-20SCM Automatic Cable Stripping and Crimping Machine
TM-80SCS Servo Stripping and Crimping Machine
TM-30SC Stripping and Crimping Machine
TM-15SCE Electrical Stripping and Crimping Machine
TM-20SCS Servo Stripping and Crimping Machine
TM-15SC Stripping and Crimping Machine
ACC-101 Automatic Single-head Terminal Crimping Machine
ACC-102A Fully Automatic Terminal Crimping Machine (Both Ends)
ACC-102B Automatic Double Terminal Crimping Machine
ACC-105 Fully Automatic Single-head End-dipping Tin Machine
ACC-106 Fully Automatic 5-Wire Single-head End-dipping Tin Machine
ACC-308B AutomaticTinning Machine Soldering Machine For Both Side
ACC-308 Fully Automatic Soldering Machine (Both ends)
ACC-208 Fully Automatic Crimping Machine (Both Ends)
ACC-508 Fully Automatic Twisting, Soldering and Crimping Machine
ACC-608 Fully Automatic Flat Cable Cut Strip and Crimp Machine
HV-CS 9070 High-Voltage Cable Shield Cutting Machine
HV-FS 9053 Cable Shield Folding Machine
HV-ACS 9100 Cable Shield Processing Machine
HV-ACS 9200 Automatic Cable Shield Processing System
HV-ACS 9300 Automotive High Voltage Cable Processing Machine
HV-ACS 9500 High Voltage Cable Processing Machine
HV-FC 9312 Aluminum Foil Cutting Machine
HV-CS 9120 Cable Stripping Machine
TM-FK40 Terminal Crimping Machine
CS-5507 Automatic coaxial cable stripping machine
CS-5515 Automatic coaxial cable stripping machine
CS-4855 Coaxial Cable Stripping Machine
CS-2486 FAKRA Cable Stripping Machine
HSM-60 Heat Shrink Tube Processing Machine
HSM-70 Heat Shrink Tube Processing Machine
HSM-80B Heat Shrink Tube Processing Machine
HSM-90 Heat Shrink Tube Processing Machine
HSM-25M Heat Shrink Tube Processing Machine
HSM-120 Heat Shrink Tube Heating Machine
HSM-50 Heat Shrink Tube Processing Machine
HSM-160 Heat Shrink Tube Processing Machine
HSM-80A Heat Shrink Tube Heating Machine
HSM-260E Enclosed Heat Shrink Tube Processing Machine
STB-10 Automatic Tape Bundling Machine
STB-30 Automatic Tape Bundling Machine
STB-50 Desktop Bundling Machine
STB-60 Adhesive Tape Bundling Machine
STB-55 Desktop Tape Bundling Machine
STB-50C Automatic Tape Cutting Machine
STP-B Hand-held Taping Machine
STP-F Hand-held Lithium Battery Tape Wrapping Machine
STP-C Automatic Wire Taping Machine
STP-D Automatic Tape Wrapping Machine
CB-B15MCS Automatic Wiring Winding Machine
CB-B15MCST Automatic Wiring Winding Binding Machine
CB-F30/150MCS Automatic Wiring Winding Machine
CB-F30/150MCST18-45 Automatic Wiring Winding Binding Machine
CB-F30/150MCST40-80 Automatic Wiring Winding Binding Machine
CB-B15CST Automatic Wiring Coiling Binding Machine
CB-F500MCS Automatic Wiring Winding Machine
CB-B30/150CS Automatic Wiring Winding Machine
CB-B10/15CS Automatic Wiring Winding Machine
CB-WT630 Automatic Wire Winding and Tying Machine
PF-08 Automatic Wire Prefeeder
PF-30 Automatic Prefeeding Machine
PF-60 Automatic Prefeeding Machine
PF-150 Automatic Wire Prefeeding Machine
CC-380 Cable Coiling Machine
CC-680 Automatic Cable Coiling Machine
CC-380D Cable Coil Machine
PF-120 Large Automatic Wire Prefeeding Machine
PF-90 Automatic Wire Prefeeder
PF-100 Automatic Prefeeder
PFM-220 Terminal Pulling Force Tester
PFM-300 Terminal Pulling Force Tester
PFM-200 Pull Force Tester For Wire Terminals
TCA-120 Terminal Cross Section Analyzer
TCA-120S Terminal Cross Section Analyzer
TCA-150 Terminal Cross Section Analyzer
TCA-80P Terminal Cross Section Analyzer
PFM-50 Pull Force Measuring Machine
PFM-100 Pull Force Measuring Machine
TCT8-B Cable Tie Tools
TCT8-C Cable Tie Tools
Hand Crimp Tool
Pneumatic Crimp Tool
Features
Parameter
Application
Features
The HSM-25M machine machine is suitable for heat shrinking processes where the heat shrink tube is located in the middle or at the head of the wire harness; the heating cavity can move along the Y-axis, and the wire harness bracket can move along the X-axis; multiple wire harnesses can be placed at a time;
The machine heats up quickly and has good thermal compensation effect; the heat shrinkable tube has high heat absorption efficiency, uniform and tight heat shrinkage, and good processing consistency. Each parameter is adjustable and can adapt to the process requirements of different heat shrink tubes.


  1. High degree of automation and high production efficiency;
  2. Parameter setting: shrinkage temperature, cooling time;
  3. Adapt to different wire diameters and different heat shrinkable tubes;
  4. The parameter setting interface has administrator authority;
  5. The positioning fixture for the wiring harness needs to be customized;

Product Features
This machine makes shrinking more efficient, more uniform, tighter and safer.

Multi-tube heat shrink
For the heat-shrinkable tube in the middle position, multiple wires can be heat-shrinked at the same time

High process compatibility
It can heat the heat-shrinkable tube in the middle of the wire harness; the processing wire diameter is 2.5-120mm2; it can heat the heat-shrinkable tube with a long distance; through the program setting, it can realize multi-stage and complex heating process.

Good temperature compensation effect
Sufficient machine power, fast thermal compensation

Good shrinkage and cooling quality
After the heat shrink is completed, the glue is evenly released, the fan is fully cooled, and the wire harnesses are not adhered to each other.

Support communication and data storage
Support 485, network port communication, can be docked with MES system to realize intelligent production; temperature data is stored for 14 days, and can be viewed and exported at any time.


Parameter
Dimensions                       500*700*400mm
Input voltage                                 220V AC
Heat shrinkage temperature         Max. 650℃
Max. power                   2000 W
Wire Processing Range                Max. 120mm2
Width of heat shrinkable cavity      300mm
OD of heat shrink tube     Max. 25mm
