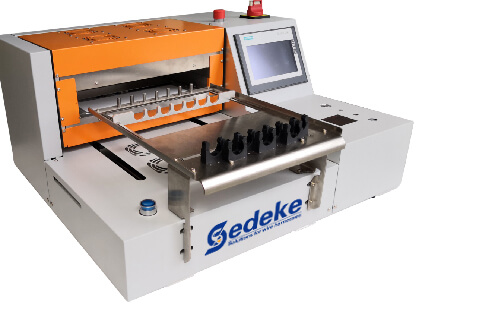

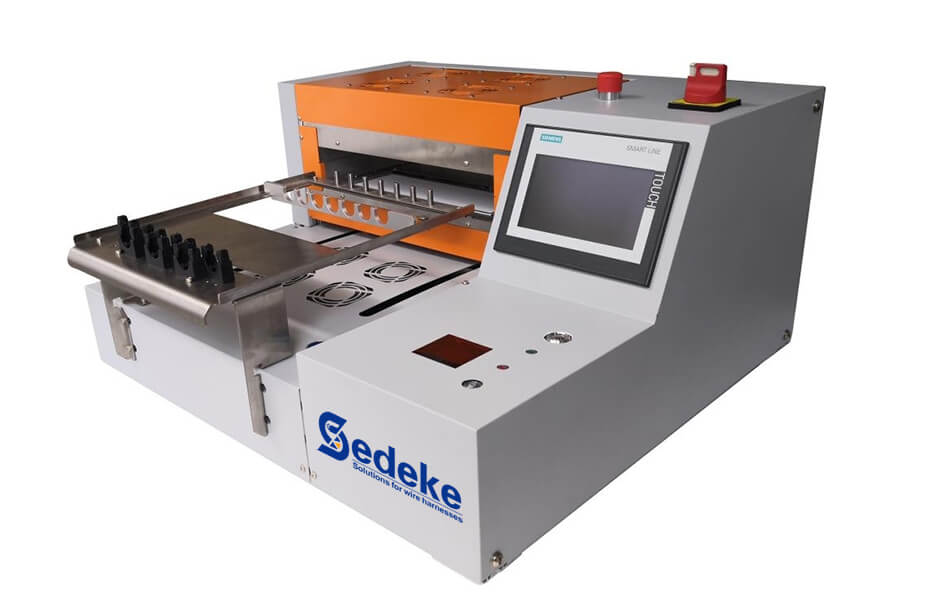

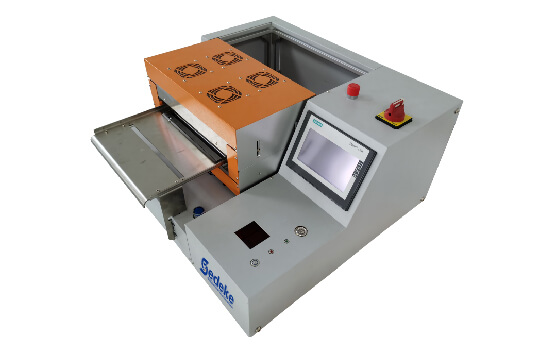

HSM-50 Heat Shrink Tube Processing Machine
STB-50 heat shrink tube heating machine is suitable for the heat shrinking process of ring terminals, terminal joints and tubular terminals with super long & double heat shrinkable tubes; the wire harness does not move, but the heating module moves; both sides can work in turn, and each side can place 5-10 wire harnesses.
Share us:
/d/images/products/HST/HSM-50.jpg
/d/images/products/HST/HSM-50S.jpg
