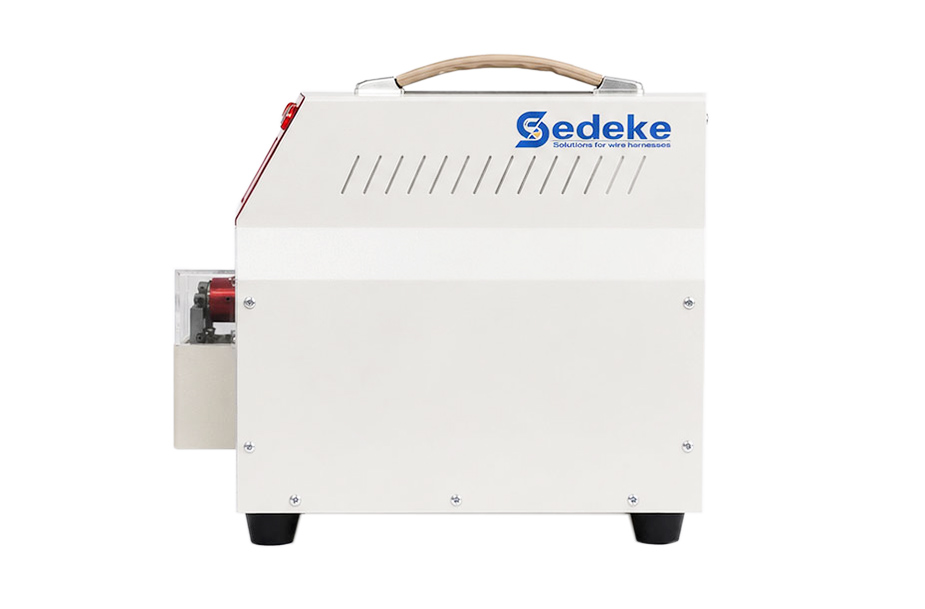

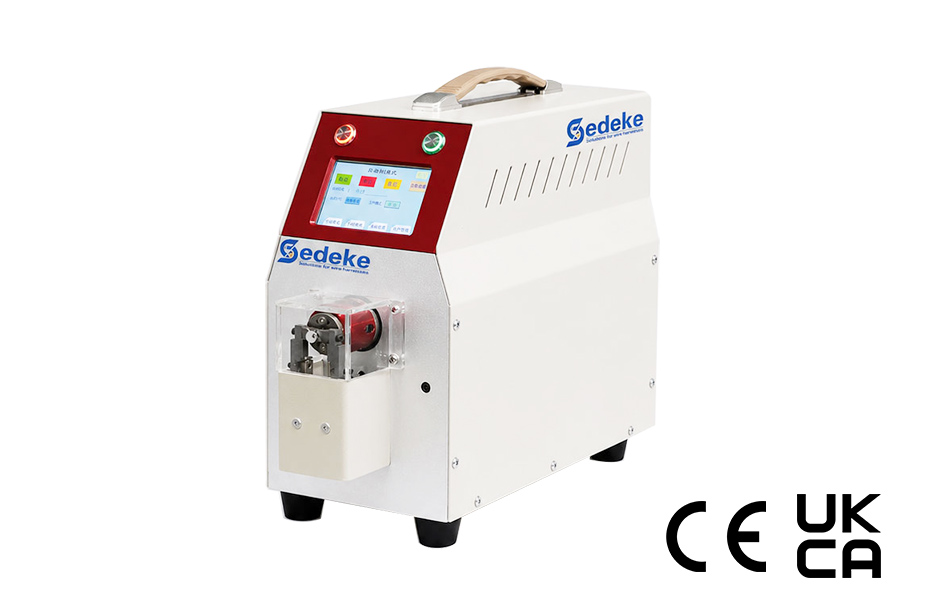

CS-0520 Semi-Automatic Coaxial Cable Stripping Machine

Strips up to 6 layers of coaxial cable – speed 750–1,150 cables per hour

CS-0520 Semi-automatic Coaxial Cable Stripping Machine, accuracy ±0.01 mm | 99 programme memories | Automatic scrap collection

The CS-0520 is a semi-automatic coaxial cable stripping machine designed for high-precision, multi-layer stripping of ultra-fine coaxial cables in the telecommunications and medical device manufacturing sectors. With a cable diameter range of 0.4–1.8 mm and a maximum stripping depth of 6 layers, it is capable of handling complex coaxial cable structures that standard stripping machines cannot process reliably.

Both stripping length and cutting depth can be programmed in 0.01 mm increments via an intuitive human-machine interface (HMI), thereby preventing conductor damage caused by inconsistent manual depth settings. The rotating cutter head (comprising three rotating blades and three wire-guiding blades) maintains consistent cutting geometry throughout the production process, extending blade service life and reducing scrap rates.

Key features:

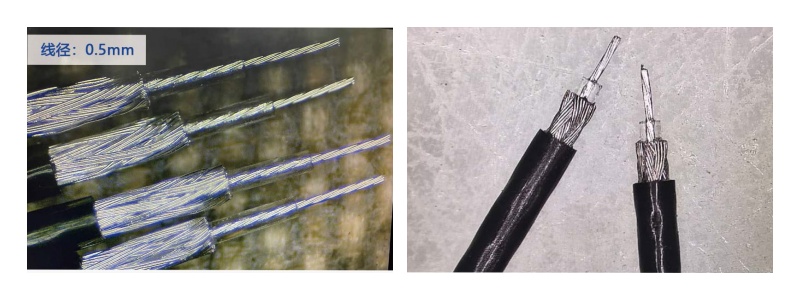

Six-layer coaxial cable stripping – processes the outer sheath, shielding braid, foil layer, dielectric layer and inner conductor layer in a controlled sequence
±0.01 mm resolution for stripping length and depth – prevents scratches or damage to fine coaxial conductors (diameter 0.4–1.8 mm)
99 programme memories — Store parameters for different cable types, enabling rapid model changeovers without the need for reprogramming
Three-blade rotating head with wire guard design — Improves cutting stability and extends blade service life compared to standard fixed-blade stripping machines
Automatic insulation waste extraction — automatically collects stripped debris, keeping the workstation clean during continuous production
Lead screw motor drive — provides consistent blade movement speed, ensuring repeatable stripping results at an output of 750–1,150 pieces per hour
Compact design weighing 18 kg — can be integrated into semi-automated production lines when connected to automatic feeding equipment

Typical applications in wire harness production:

Pre-cutting prior to inserting heat-shrink tubing onto wire ends or terminal connectors
Batch cutting of insulating sleeves for automotive wire harness assemblies
Cutting of silicone tubing sections for high-temperature wire harnesses in electric vehicles and industrial applications
Processing of braided sleeves for cable shielding and protection

Parameter

Max. Stripping Length	0–20 mm
Wire Diameter Range	0.4–1.8 mm
Stripping Length Setting Unit	0.01 mm
Cutting Depth Setting Unit	0.01 mm
Max. Stripping Layers	6
Number of Blades	3
Number of Wire-Guard Blades	3
Power Supply	AC 220V / 110V, 50/60Hz
Power Consumption	300W
Dimensions (W × D × H)	310 × 140 × 280 mm
Net Weight	18 kg
Drive System	Lead Screw Motor
Waste Handling	Automatic suction collection
Production Output	750–1,150 pcs/hour (varies by cable type)
