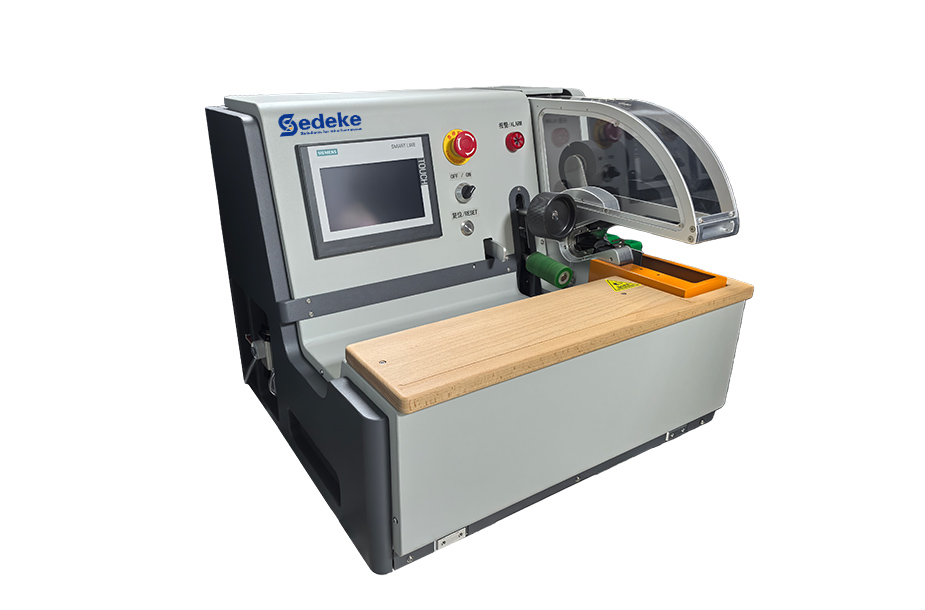

STP-C Automatic Wire Taping Machine
STP-C is an automatic towing taping equipment to bundle non-branch or simple-branch wire harness. This taping machine is controlled by foot pedal. It can effectively reduce the labor and greatly improve the taping quality and efficiency.
Share us:
/d/images/products/taping-and-bundling/stp-c.jpg
/d/images/products/taping-and-bundling/stp-c2.jpg
Products List
UniCut EC-6100 Automatic Cutting Machine
EC-920 Automatic Cutting Machine
EC-960H High Speed Cutting Machine
EC-821 Corrugated Tube Cutting Machine
EC822 Corrugated Tube Cutting Machine
UniStrip 2016 Wire Stripping Machine
CS-36R Coaxial Cable Stripping Machine
ACS-9580 Automatic Coaxial Cable Stripping Machine
ACS-9680 Automatic Coaxial Cable Stripping Machine
CS-2486 Coaxial Cable Stripping Machine
CS-4855 Coaxial Cable Stripping Machine
ESC-BX1 Wire Cutting and Stripping Machine
ESC-BX4 Wire Cutting And Stripping Machine
ESC-BX6 Wire Cutting And Stripping Machine
ESC-BX7 Wire Cutting And Stripping Machine
ESC-BX15S Wire Cutting and Stripping Machine
ESC-BX30 Automatic Cutting and Stripping Machine
ESC-BX30S Sheathed Cable Automatic Cutting and Stripping Machine
UniCrimp TM-20 Terminal Crimping Machine
TM-25M Automatic Terminal Crimping Machine
TM-40S Automatic Terminal Crimping Machine
TM-E116 Electrical Terminal Crimping Machine
TM-E120 Pneumatic Type Terminal Crimping Machine
TM-E140 Pre-insulation Tubular Terminal Crimping Machine
SAT-AS6P Applicator
SAT-MS6 Applicators
ACC-208 Fully Automatic Crimping Machine (Both Ends)
ACC-308 Fully Automatic Soldering Machine (Both ends)
ACC-508 Fully Automatic Twisting, Soldering and Crimping Machine
CS-9070 Cable Shield Cutting Machine
FS-9053 Cable Shield Folding Machine
ACS-9100 Cable Shield Processing Machine
ACS-9200 Automatic Cable Shield Processing System
TM-FK40 Terminal Crimping Machine
CS-2486 FAKRA Cable Stripping Machine
STB-50 Automatic Tape Bundling Machine
STB-55 Desktop Bundling Machine
STP-A Hand-held Auto-Taper
STP-C Automatic Wire Taping Machine
STP-H Automatic Wire Taping Machine
PF-03F Automatic Wire Prefeeder
PF-03S Automatic Wire Prefeeder
PF-04 Automatic Wire Prefeeder
PF-06 Automatic Wire Prefeeder
PF-05 Automatic Wire Prefeeder
PF-08 Automatic Wire Prefeeder
CC-33R Cable Coiling Machine
HSM-60 Heat Shrink Tube Processing Machine
PFM-50 Pull Force Measuring Machine
PFM-100 Pull Force Measuring Machine
TSA-120 Terminal Cross Section Analyzer
TSA-120S Terminal Cross Section Analyzer
TSA-80P Terminal Cross Section Analyzer
TCT8-A Cable Tie Tools
TCT8-B Cable Tie Tools
TCT8-C Cable Tie Tools
Hand Crimp Tool
Pneumatic Crimp Tool
Features:
Parameter
Download
Features:
01
Automatically Wrapping

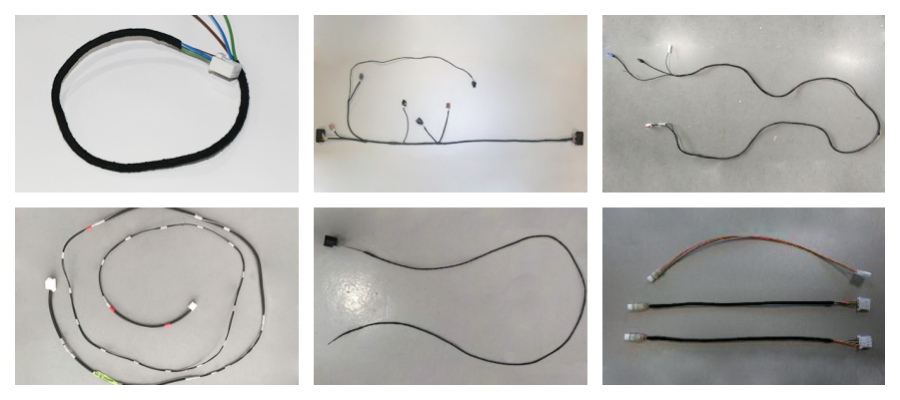

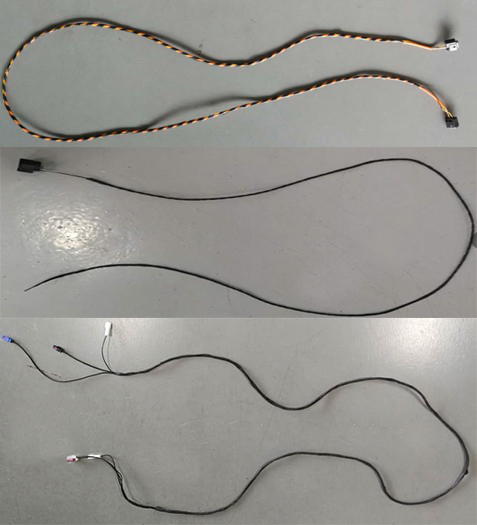

It is quick for any part of a single wire harness to be winded ,especially for simple branch wire which only requires the operator to pre-wrap tape manually.
02
Excellent Quality and Efficiency
It is easy and quick to adjust the wrapping speed and overlap rate by pressing the control button and to achieve interval or consistent wrapping effect. The transmission mechanism can automatically restore so that the next taping operation is ready after one taping is completed.
03
Simple and Comfortable
The position of the equipment is fixed, and it is very easy to learn because the operator is only required to put wiring harness in the machine. Moreover, the ergonomic design lessens the operator’s fatigue in hours working.
04
Safe and Stable
The cutter protection mechanism and the transparent protective cover can prevent the operator or the wire harness from being scratched by the cutter.
Parameter
Input Voltage 110V/ 220V AC (±10%)
Air Pressure 0.5-0.6MPA
Feeding Speed 0-200mm/s
Winding Speed 60-370rpm
Tape Width  9-25mm
Harness Diameter  5-32mm
Dimensions 500x523x427 mm
Tape Roller External Diameter ≤110mm or Customized
Diameter of Tape Mandrel 38mm, 32mm,or Customized
Tape Materials  PVC, Cloth, Felt etc.
Download
