Features
1. All the mechanical parts are imported from Japan and Germany combined with domestic high-quality goods, which will be more durable and ensure product quality stable.
2. The blade adopts global top heat treatment technology to make the blade more durable and stable.
3. The imported calibration equipment strictly controls the straightness and flatness of the cutting edge. With high accuracy and thickness tolerance less than 0.03mm.
4. The cutting edge adopts mirror treatment to ensure that there is no resistance in stripping and cutting, and the wire cuts are more smooth and beautiful. At the same time, it has the features of labor saving and low noise.
5. The unique three-side grinding technology of cutting edge makes the abrasion resistance increase by more than 30% compared with other ordinary blades.
6. Each machine can be put into storage and shipped after tens of thousands of simulated processing.
​​​​​​​

Product Introduction

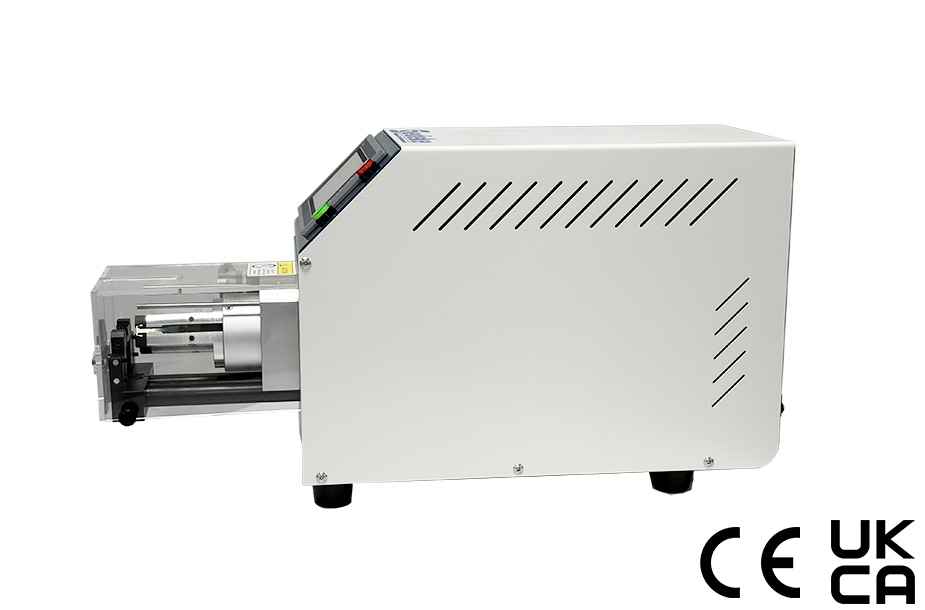

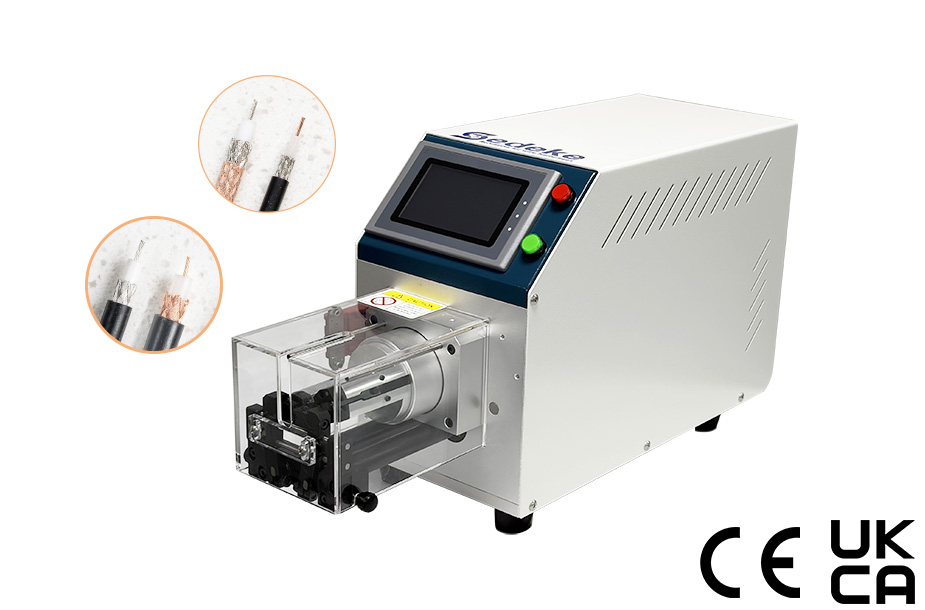

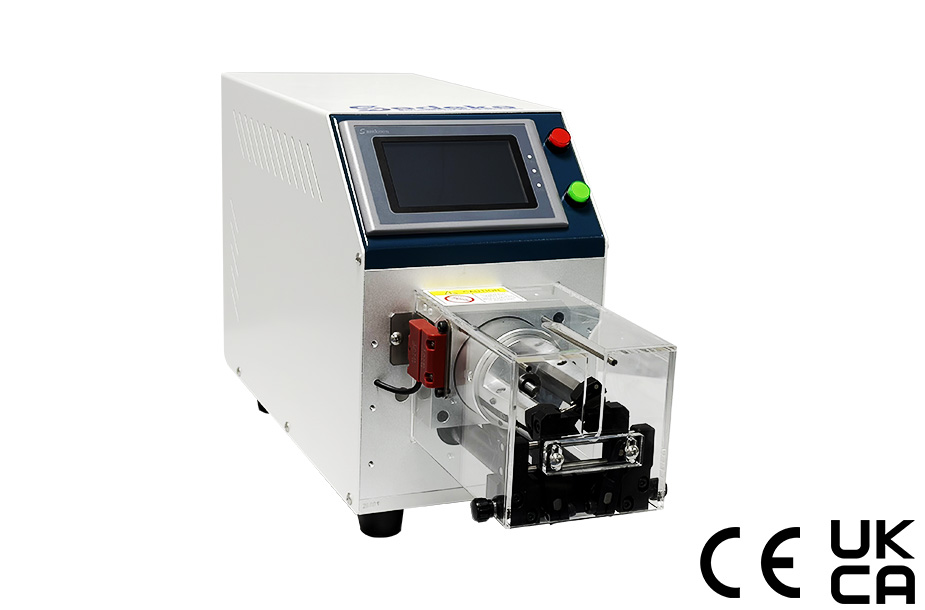

CS-2486 coaxial cable stripping machine is high precision coaxial cable stripping equipment which adopts the intelligent digital photoelectric technology, Japanese NSK ball bearing, screw drive and use the patent design coaxial positioning device.
You don’t need to recalibrate the blade when users change tools which makes the operation easier. Using menu dialogue control system can set each function easily and can save 100 kinds of processing data. There are 3 start up ways: button switch / trigger switch / pedal switch. This coaxial cable stripping machine can set up to nine layers of stripping and with twisting function and adjustable speed.
Parameter
Overall Dimensions 530X190X300(MM)
Weight 19KG
Max. processing diameter 7.5 mm
Min. processing diameter 0.5mm
Max. stripping length 48mm
Min. stripping length 0.1mm
Max. stripping layers 9 layer
Cutting depth unit 0.01mm
Drive way Motor / ball screw drive
Rotary cutting blade 2 pieces, Material: imported tungsten steel
Centering blade 2 pieces, Material: imported high speed steel
Thread tension device Automatic centering, motor drive, clamping force program control
Startup mode Induction / Manual / Pedaling(Optional)
Power 220V/50HZ  250W
Work environment 0-50 degree, moderate dryness, vibration-free work surface
Production At least 500-700 pcs/hr (depending on different wire length and operating procedures)
