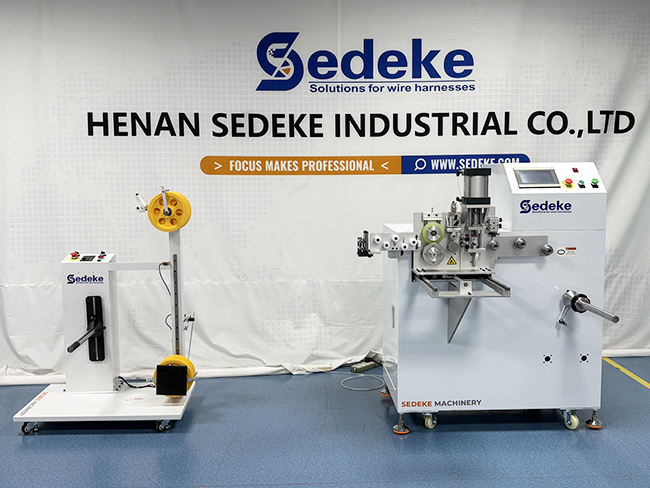

CB-F500MCS Automatic Winding Machine: The New Benchmark for Precision and Power

In the high-stakes world of wire and cable processing, precision isn't just a goal—it's a requirement. The CB-F500MCS is a heavy-duty, floor-standing automatic winding machine engineered to bridge the gap between high-speed production and meticulous accuracy.
Equipped with an advanced PLC control system and a proprietary length-measuring mechanism, this machine is designed for enterprises looking to scale their automation.

Engineering Excellence: Technical Specifications
The CB-F500MCS is built to handle demanding industrial environments. Below are the core specifications that define its performance:

Feature	Specification	Key Benefit
Model	CB-F500MCS	Professional Grade
Loading Weight	50 KG	Supports heavy-duty industrial cables.
Winding Speed	1-8 turns/S	Adjustable speed for different wire types.
Winding Inner Diameter	50-300mm	Highly flexible for various coil sizes.
Rated Power	2500W	Robust motor for consistent high-torque output.
Net Weight	150 KG	Heavy floor-type base for vibration-free operation.
Dimensions	L1250×W1040×H1280mm	Ergonomic footprint for factory floors.

Core Functional Highlights
1. Absolute Precision with Rotary Grating Encoder
Accuracy is the soul of the CB-F500MCS. Unlike traditional estimation methods, this machine utilizes a pulling rotary grating encoder. This technology monitors the physical displacement of the wire in real-time, ensuring that the "meter counting" function is accurate to the millimeter. Say goodbye to material waste and length discrepancies.
2. Intelligent PLC Control & Automation
The heart of the machine is a built-in PLC control system. Operators can easily preset the desired winding length or number of turns. Once the parameters are set, the machine operates autonomously, allowing for a "set-and-forget" workflow that significantly reduces labor costs.
3. Professional Self-Sorting Mechanism
Messy coils are a thing of the past. With a standard sorting stroke of 200mm, the CB-F500MCS features an automatic sorting function. As the wire winds, the machine precisely aligns each layer, resulting in perfectly organized, professional-looking coils ready for shipping.
4. Versatile Wire Feeding
The integrated automatic wire feeding mechanism allows the machine to locate and wind wires of varying lengths and gauges. Whether you are working with delicate electronics wire or thicker industrial power cables, the CB-F500MCS adapts seamlessly to your production needs.
5. Seamless Synchronous Integration
The CB-F500MCS is designed for modern smart factories. It features a dedicated communication interface that allows for synchronous linkage with external pre-feeding machines (Pay-off machines). This ensures that the feeding speed of the source wire perfectly matches the winding speed, preventing wire tension issues or tangling during high-speed operation.


Why the CB-F500MCS?
Durability: The 160KG floor-type design ensures the machine remains stable even at its maximum speed of 8 turns per second.
Versatility: Adjustable winding inner diameters (50-300mm) and lengths make it a "one-size-fits-all" solution for diverse product lines.
Safety & Compliance: Operates on standard AC220V 50Hz/60Hz, making it compatible with global power standards.

Conclusion
The CB-F500MCS is more than just a winding machine; it is a precision instrument designed to optimize your wire processing facility. By combining heavy-duty loading capacity (50KG) with smart PLC logic, it empowers manufacturers to produce more, waste less, and maintain the highest quality standards.
